Aluminum-edge wood doors
Aluminum-edge wood doors combine a wood-finish face with a precise four-sided metal edge. The internal build-up, edge colour, face finish and magnetic hardware are coordinated as one door set.
Choose a starting model.

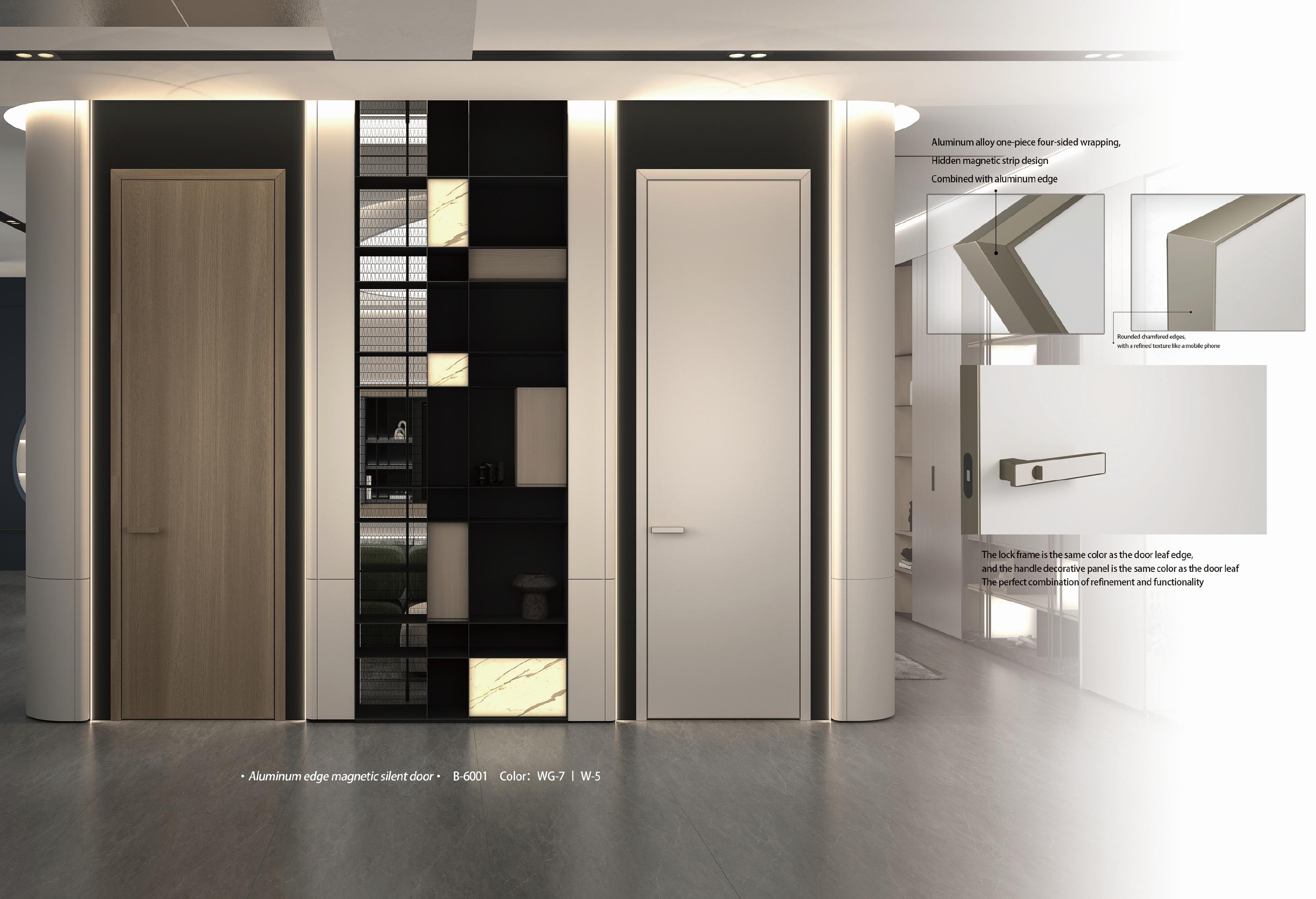

The catalogue shows B-6001 with WG-7 and W-5 finish references. Treat the model and colours as selection references until the current sample and construction are confirmed.
B-6001 detail reference
The catalogue view shows the door face, four-sided aluminum edge, magnetic lock and handle detail together.
Confirm the door construction.
Use these catalogue details as a starting point. The quotation records the construction approved for your project.
The 2024 aluminium-edge door announcement describes a 45-degree closing detail. Confirm which model uses that detail; an edge angle is separate from the leaf thickness below.
- Perimeter
- Four-sided aluminum frame and edge sealing.
- Core
- Aluminum keel with aluminum honeycomb filling.
- Faces
- HDF or MDF board references.
- Surface
- PVC film catalogue reference.
- Leaf
- 45 mm catalogue thickness reference.
Coordinate the visible surfaces.
Catalogue finish reference shown with B-6001.
Catalogue finish reference shown with B-6001.
Door surface and aluminum edge are approved together.
Lock and handle plates can be coordinated with the edge colour.
Specify hardware with the opening.
Catalogue reference integrated with the edge detail.
Shown as part of the frame and door relationship.
Finish coordinated with the door-leaf edge.
Selected for the opening and recorded in the door schedule.
Wood-door hardware boards
Lock, handle, hinge and door-stop references for applicable wood-door systems. Compatibility is confirmed with the opening schedule.
What we need before quoting.
- Opening size and wall thickness
- Face finish and aluminum edge colour
- Frame and magnetic-strip detail
- Lock, handle plate, hinges and stop
- Approved sample and current construction
Common questions about aluminum-edge wood.
What is inside an aluminum-edge wood door?

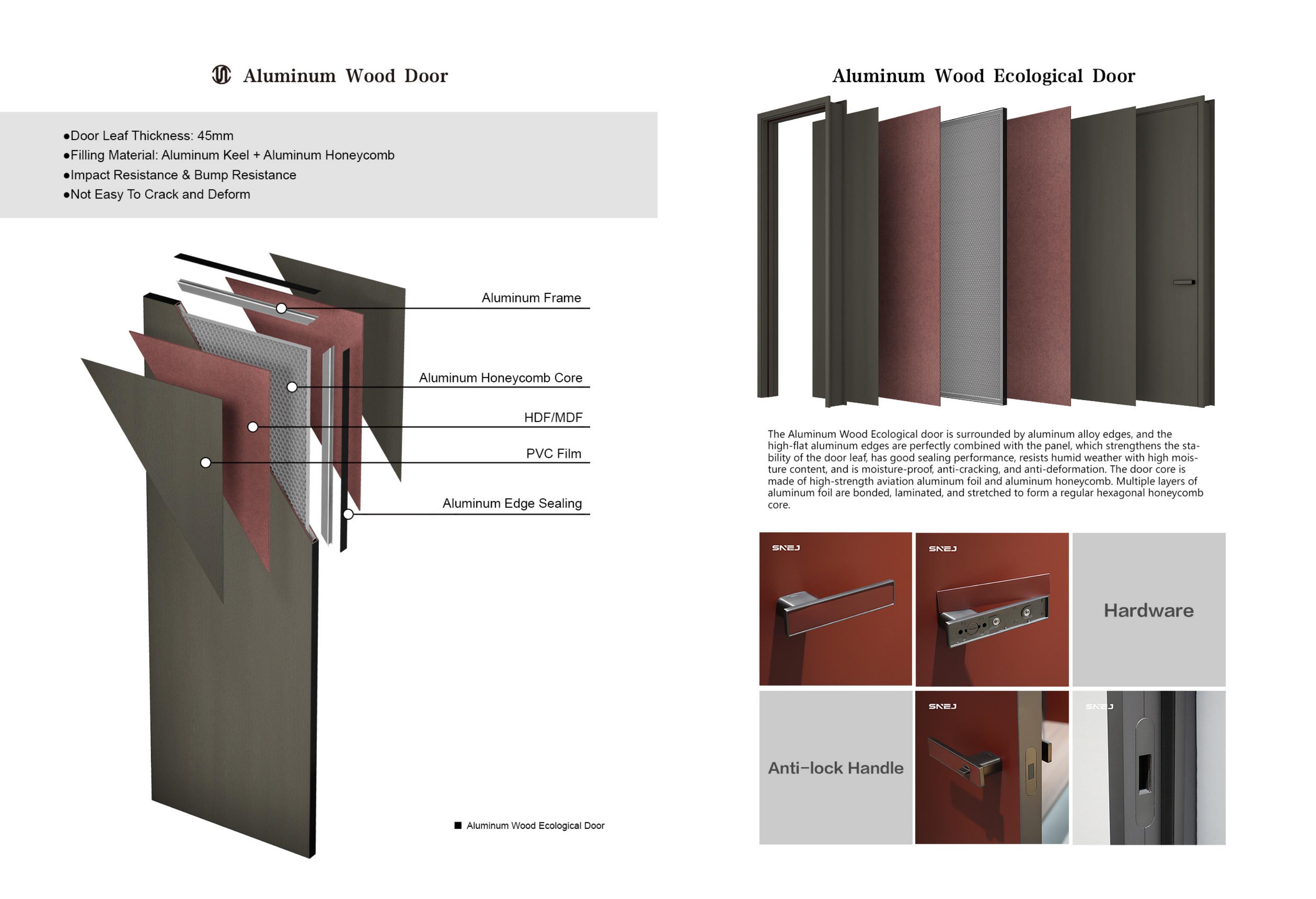

The catalogue diagram shows an aluminum frame or keel, aluminum honeycomb core, HDF or MDF faces, a PVC surface and four-sided aluminum edge sealing.
What do B-6001, WG-7 and W-5 mean?
B-6001 is the door model reference shown in the catalogue. WG-7 and W-5 are the accompanying finish references. Current samples and construction must be reconfirmed.
Can the hardware match the aluminum edge?
The catalogue shows coordinated lock and handle plates. Send the preferred finish reference so the current matching hardware set can be checked.
